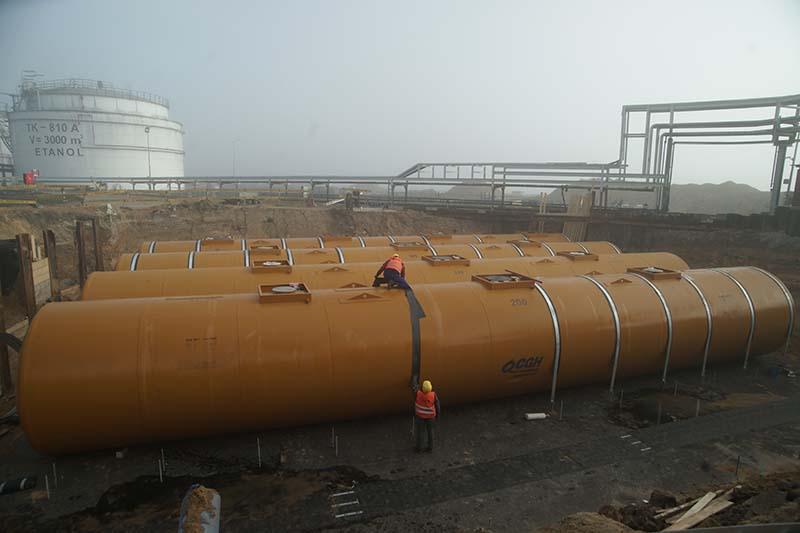

Ethanol production plant, PolandFour single-compartment tanks with a capacity of 200 m³ for ethanol, and...
Show all
Underground LPG module

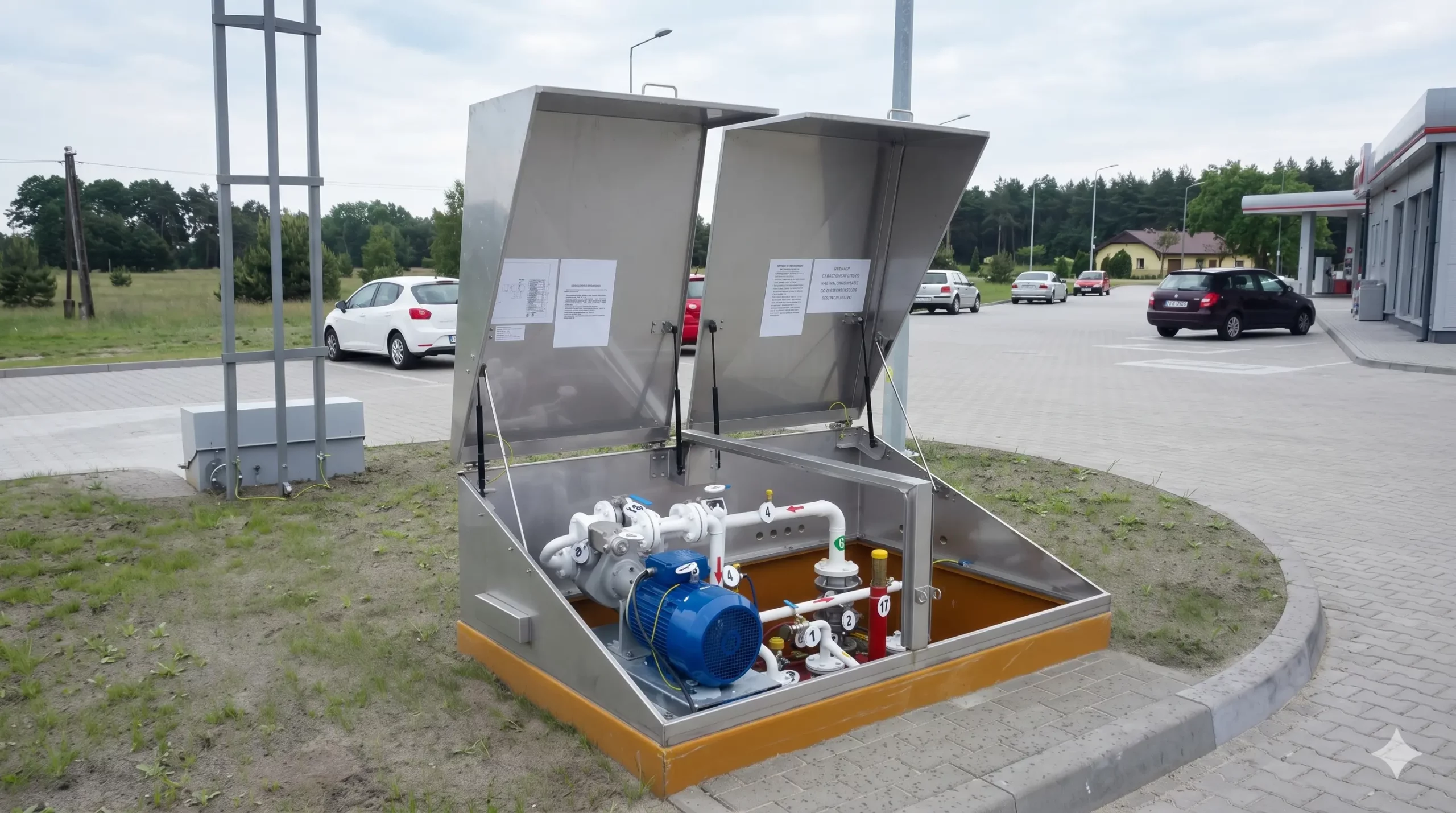

CGH underground LPG modules are advanced systems that provide comprehensive, safe, and efficient storage and distribution of LPG. Made from the highest quality materials and based on modern technologies, our modules meet the most stringent safety and performance standards.
The innovative module design, integrating the tank with the pump foundation and valves in a single assembly, minimises installation time, enabling swift inspection and sign-off by local inspection authorities. This makes the installation process simpler and more efficient.
By choosing a CGH underground LPG module, you invest in robustness, reliability, and ease of use. Our solutions are perfectly suited to both industrial and commercial needs, offering full functionality and safety in everyday operation.
Advantages of CGH underground LPG modules
Compliance with standards – We offer products meeting the requirements of directive PED/2014/68/EU and ATEX.
Quick installation and sign-off – You receive full as-built documentation facilitating the inspection process by control authorities.
Safety in use – We guarantee a robust steel structure and advanced explosion protection.
Flexibility of applications – We offer tanks of various capacities (from 9 to 20.5 m³), tailored to customer needs.
Space optimisation – The compact design of CGH modules allows maximum use of available space.
Durability – We build products exclusively from the highest quality materials resistant to corrosion and mechanical damage.
Technical data of CGH underground LPG modules
| Capacity | Diameter | Length | Height | Weight |
|---|---|---|---|---|
| [m3] | [mm] | [mm] | [mm] | [kg] |
| 9 | 1 250 | 7 650 | 2 020 | 1 756 |
| 9,9 15 | 1 600 | 5 330 7 830 | 2 370 | 2 349 3 119 |
| 9,9 14,5 20,5 | 2 000 | 3 540 5 040 7 040 | 2 700 | 2 353 3 031 3 934 |
* Total length within a tolerance of +/-0.5% in accordance with the standard. Other tank sizes available on request.
Standard equipment of the LPG module
- LPG tank with manhole sump
- Corken FD/DLD 150 LPG pump and fittings in the tank-pump circuit
- pump type: DLD 150
- electric motor power: 5.5 kW
Fittings
- ball valve DN 25
- wafer-type filter DN 50
- wafer-type non-return valve DN 25
- pump pressure gauge 63 mm with needle valve
- excess flow valve m/f DN 50
- bypass valve
- hydrostatic valve
- pump vibration damper
CGH underground LPG modules – optional equipment
- Additional valves and safety devices – for specific customer requirements.
- Anti-corrosion insulation – PUR coatings providing long-term protection.
- Integrated monitoring systems – enabling real-time tracking of gas level and pump operation.
- Operating pressure customisation – options for working pressure of 15.6 bar or 17.6 bar.
Applications of CGH underground LPG modules
CGH LPG modules have been designed for:
Equipping fuel stations with LPG.
Fast and safe distribution of LPG from dispensers.
