Efficiency and cost savings
- Anchoring tanks without the need for a poured concrete foundation
- Ability to place the tank on native soil or a bedding layer
- Reduced installation time compared to traditional anchoring methods
|
Case studies
Bitumen storage tanks
Asphalt production, Ukraine80 m³ bitumen tanks. The tanks were delivered to Ukraine. We also manufacture...
Show all
ANCHORING WITH REINFORCED CONCRETE BEAMS
The BEAMS system is a modern approach to anchoring underground tanks, eliminating the need for traditional foundations and significantly speeding up the entire installation process. The use of prefabricated reinforced concrete beams allows for fast and stable tank placement directly on native soil or bedding material, which considerably shortens installation time and reduces construction costs. Anchoring is performed using steel straps and bolted components that create a solid and durable connection, ensuring safety under all soil conditions.
Why choose the reinforced concrete beam system “BEAMS”?
Easy and fast installation
- The anchoring system is delivered to the construction site together with the tank
- No need to use heavy machinery to install the beams
- Prefabricated elements ensure fast and precise installation
Durability and reliability
- Reinforced concrete beams provide stable support for the tank
- Soil cover resting on the beams acts as additional stabilising weight
- Steel anchoring components made from corrosion-resistant, long-lasting materials
Anchoring must be carried out in a way that ensures stability in all soil conditions
Anchoring underground tanks
System BEAMS łączy w sobie prostotę instalacji, oszczędność czasu i skuteczność w działaniu.

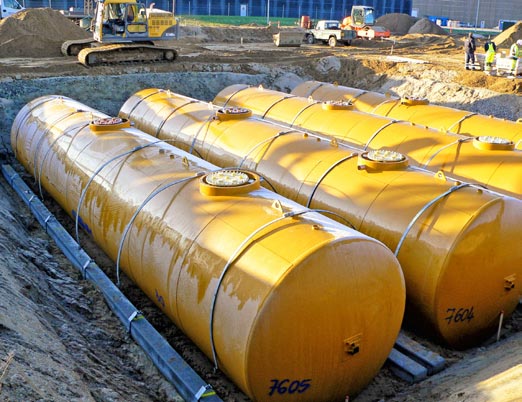

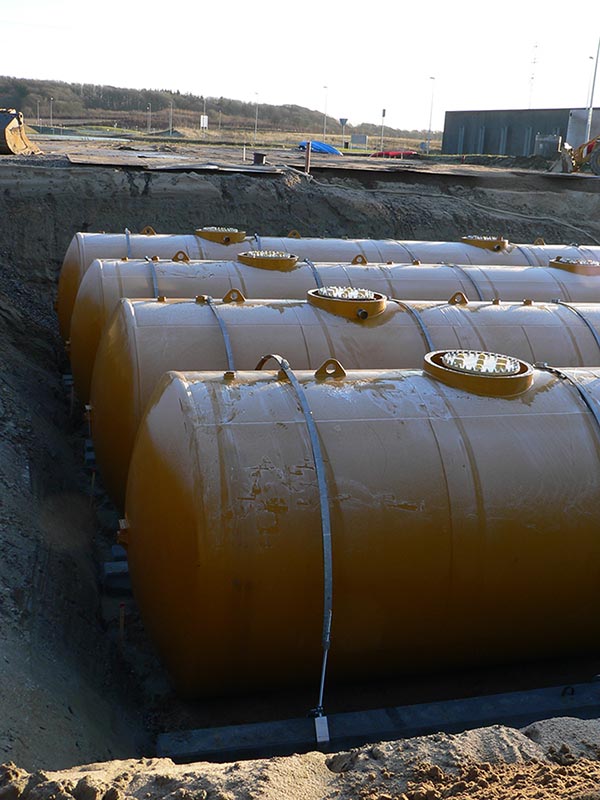

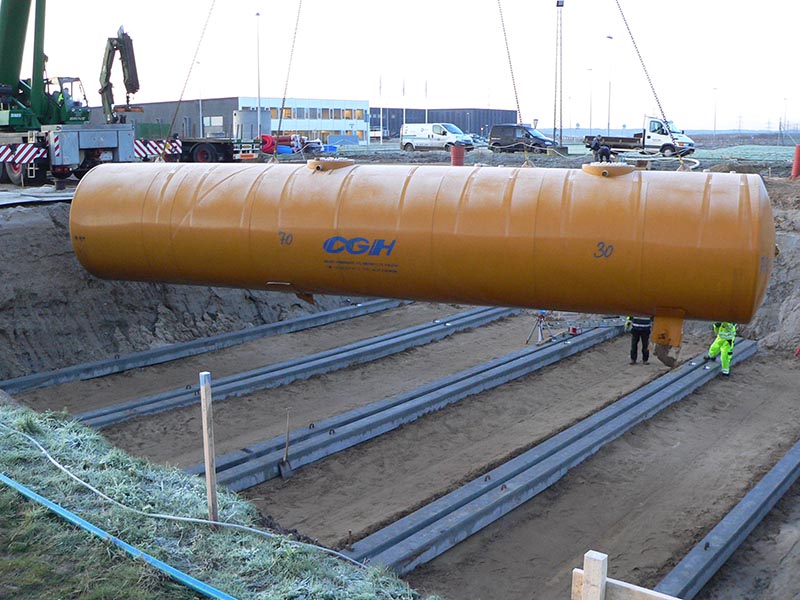

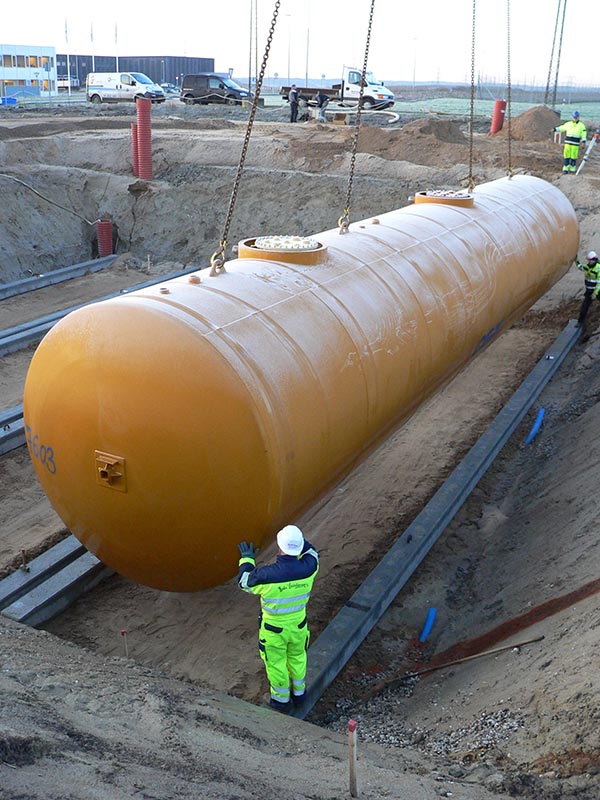

Photos

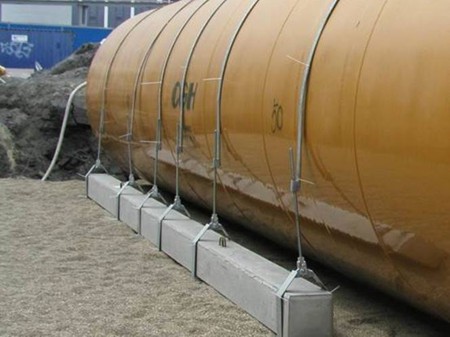

Components of the anchoring system:
- Reinforced concrete beam – minimum dimensions: 300 × 300 × 4000 mm
- Steel beam strap – stabilises the beam in the installation area
- Threaded rod – connecting component of the anchoring system
- Steel tank strap – ensures the tank is securely fastened to the anchoring system
- Pin with cotter or bolt – connects the threaded rod with the beam strap
- Strap connection clamp – enables durable fastening of all anchoring components
Installation guidelines:
- Anchoring must be carried out in a way that ensures stability in all soil conditions
- Concrete beams placed symmetrically on both sides of the tank
- Beam length should match or exceed the length of the tank
