Water and fire protection storage tanks
Constant access to water is the foundation of smoothly functioning infrastructure. CGH water storage tanks are therefore an indispensable part of that infrastructure — a solution guaranteeing reliability, durability, and protection against deterioration of stored water quality. Thanks to the use of high-grade steel, modern anti-corrosion protection, and the ability to adapt to individual needs, our tanks meet the highest industry requirements. We offer both underground and above-ground tanks that perform reliably regardless of the application.
CGH – water storage at the highest level!
CGH storage tanks are used across many industries, such as:
Industry – storage of process and technological water

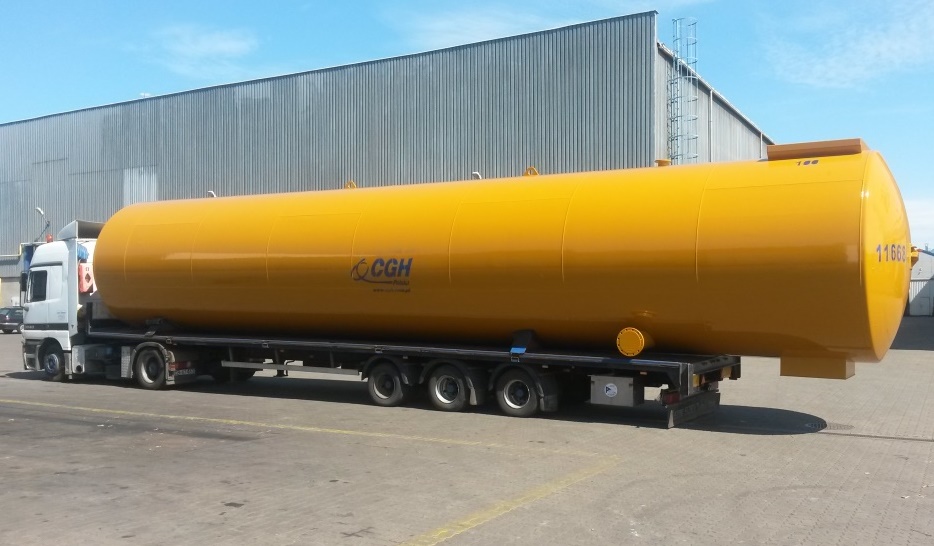

Fire-protection systems – water reserve for firefighting
Commercial and residential buildings – retention and utilisation of rainwater.
Hot water storage in energy systems.
Intended use and advantages of CGH tanks
CGH tanks enable the safe storage of:
- fire protection water
- rainwater
- drinking water
- industrial water
- hot-water buffers
Robust construction – made from high-quality carbon or stainless steel.
Advanced anti-corrosion protection – protective coatings guarding against material degradation.
Modern, automated production – the highest manufacturing precision is ensured by the Heinrichgluck production line.
Highest welding quality – internal and external welds produced by the submerged arc welding method, using the best welding materials, guarantee the durability and tightness of the structure.
Quality control at every stage – tanks undergo detailed non-destructive testing of welded joints.
Individual customisation – possibility of manufacturing a tank in accordance with an individual design, tailored to the customer’s specific requirements.
Product showcase
Types:

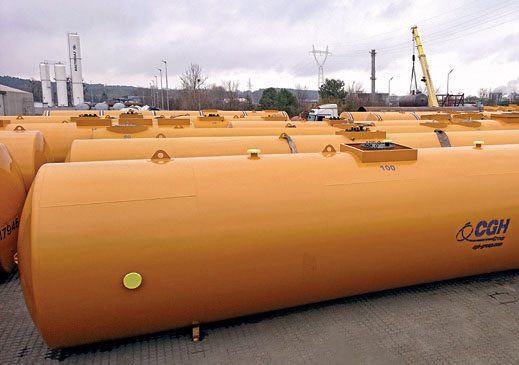

- Single-wall underground – in accordance with EN 12285-1 or AD 2000

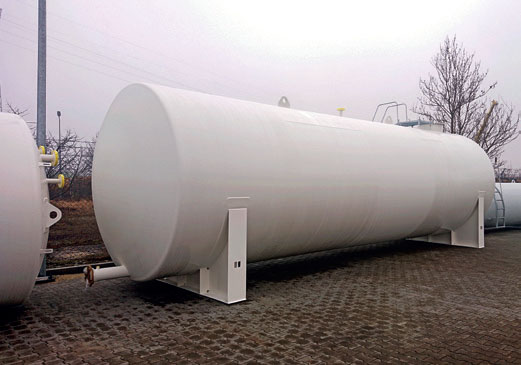

- Single-wall above-ground – in accordance with EN 12285-2 or AD 2000
Materials:
- Carbon steel S235JR, P355
- Stainless steel 304L
Capacity:
from 5 m³ to 120 m³
Operating pressure:
according to installation requirements
Operating temperature:
from -20°C to +50°C.
Optional equipment – CGH water storage tanks
- Possibility of installing an electric heating system or a heating coil.
- Thermal insulation to ensure stable water temperature.
- Water level monitoring and leak tightness control systems.
- Internal epoxy coatings – for drinking water storage (PZH approval).
External tank surface
Surface cleaned to cleanliness grade Sa 2.5 in accordance with ISO 8501-1 and anti-corrosion coating:
- for underground tanks: polyurethane coating resistant to 10kV dielectric breakdown,
- for above-ground tanks: to class C3M or higher.
