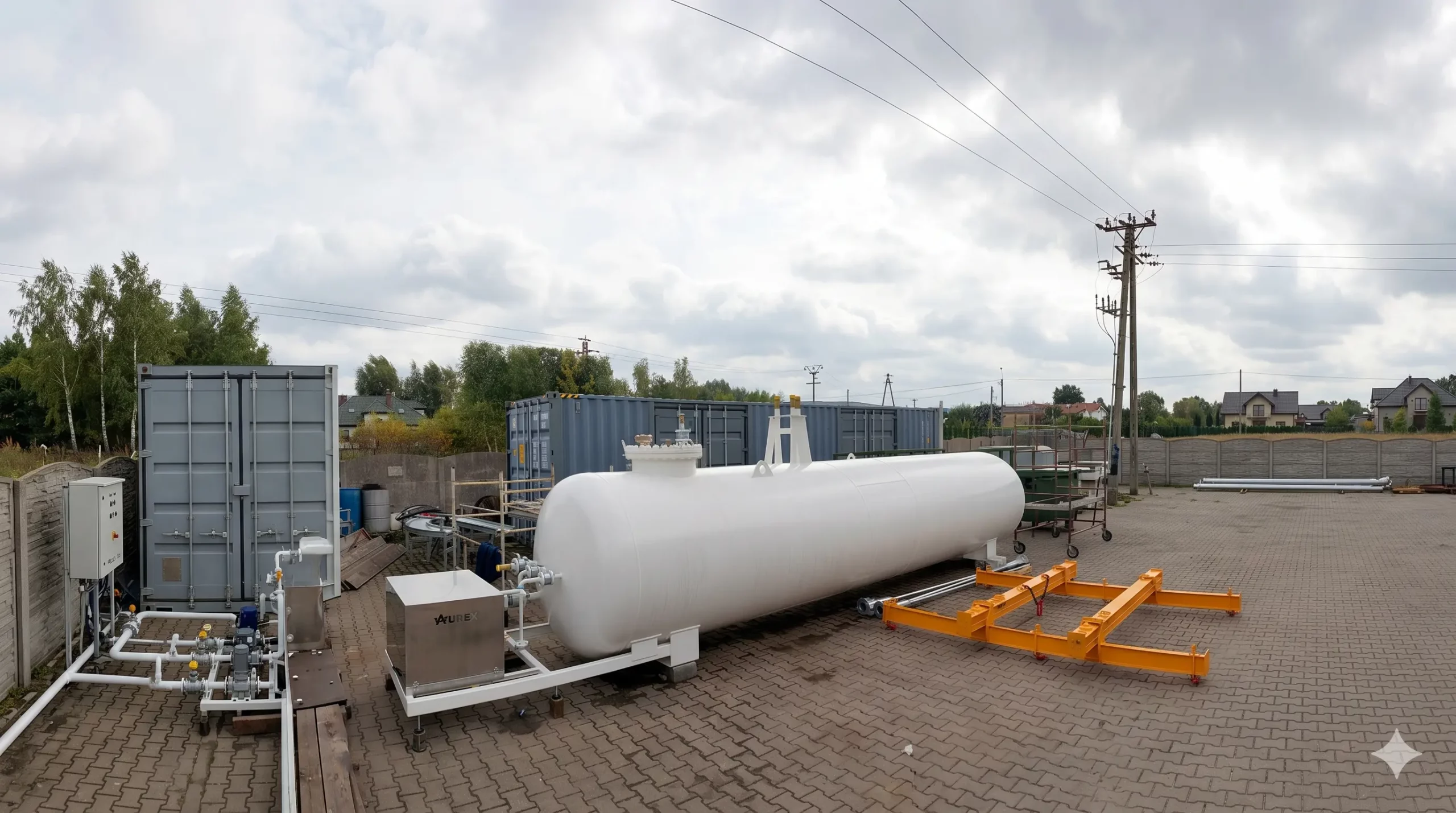

Aboveground LPG module
CGH above-ground LPG modules are modern units that combine advanced technology with ease of use and the highest safety standards. Our products are characterised by exceptional build quality and full compliance with PED/2014/68/EU and ATEX standards, ensuring reliability and safety even in the most demanding conditions.
Thanks to the integration of key components such as the Corken pump and a complete valve set, our modules guarantee reliability and long-term operational efficiency. Tanks with capacities from 9 to 20 m³ are an excellent solution for companies seeking effective LPG storage and distribution systems.
By choosing CGH LPG modules, you invest in trouble-free operation, high efficiency, and savings in time and operational costs. Our solutions are a guarantee of process optimisation and safety in your company’s day-to-day operations.
Applications of CGH above-ground LPG modules
CGH above-ground LPG modules are used in:
industrial heating and process installations,
transport companies using LPG-powered vehicles,
recreational facilities and catering establishments requiring efficient gas supply systems.
Technical data of CGH aboveground LPG modules
| Capacity | Diameter | Length | Height | Weight |
|---|---|---|---|---|
| [m3] | [mm] | [mm] | [mm] | [kg] |
| 9 | 1 250 | 7 650 | 2 020 | 1 756 |
| 9,9 15 | 1 600 | 5 330 7 830 | 2 370 | 2 349 3 119 |
| 9,9 14,5 20,5 | 2 000 | 3 540 5 040 7 040 | 2 700 | 2 353 3 031 3 934 |
* Total length within a tolerance of +/-0.5% in accordance with the standard. Other tank sizes available on request.
Standard equipment of the LPG module
- LPG tank with manhole sump
- Corken FD/DLD 150 LPG pump and fittings in the tank-pump circuit
- pump type: DLD 150
- electric motor power: 5.5 kW
Fittings
- ball valve DN 25
- wafer-type filter DN 50
- wafer-type non-return valve DN 25
- pump pressure gauge 63 mm with needle valve
- excess flow valve m/f DN 50
- bypass valve
- hydrostatic valve
- pump vibration damper
CGH aboveground LPG modules – optional equipment
We adapt LPG modules to individual customer needs thanks to a wide range of optional equipment:
- automatic LPG level monitoring systems,
- additional safety valves,
- anti-corrosion protection systems,
- specialist pumps with increased flow capacity,
- remote control modules.
Advantages of CGH above-ground LPG modules
Reliability: The highest quality components used in our modules, such as the Corken pump, guarantee stable and efficient operation.
Ease of installation: We deliver comprehensive modules that are ready for immediate connection, reducing installation time.
Safety: Our solutions hold compliance certificates with PED/2014/68/EU and ATEX standards, guaranteeing the highest safety standards in their use.
Durability: The CGH above-ground modules we deliver feature robust construction from high-quality steel, which translates into their long service life.
Cost optimisation: Our comprehensive solutions reduce both investment and operational expenditure.
