We use carbon steel S235JR and stainless steel 304.
|
Chilled water tanks
CGH chilled water tanks provide efficient storage and temperature stabilisation of chilled water, which is essential in industrial processes and HVAC (Heating, Ventilation, Air Conditioning) systems. Chilled water is circulated through heat exchangers to effectively lower the temperature of air or equipment.
Tailored to your needs – CGH tanks for the most demanding applications
Our products meet the requirements of EN 12285, PED 2014/68/EU, or ASME.
We offer above-ground and underground tanks, tailored to individual customer needs. It is possible to equip tanks with thermal insulation, heating systems, and anti-corrosion coatings adapted to specific operating conditions.
We adapt designs to the specific nature of customers’ production processes.
Intended use of chilled water tanks – key functions
Storage of chilled water, enabling flexible management of its consumption according to demand.
Maintaining a stable chilled-water temperature, essential for efficient cooling performance.
Accumulating cold water during low-demand periods to meet increased needs during peak hours.
Production of creams, emulsions, and other body care products.
Product showcase
Capacity:
from 5 m³ to 120 m³, adapted to customer needs.
Diameter:
from 2000 mm to 3200 mm, depending on design requirements.
Manufacturing standard:
AD 2000
Operating pressure:
-0,02 to 1.5 bar
Operating temperature:
+10°C/+50°C
Chilled water tanks – optional equipment
- Thermal insulation – Reduces energy losses and increases system efficiency.
- Anti-corrosion coatings – Protect the tank against external factors, extending its service life.
- Ladders and service platforms – Facilitate access to and maintenance of the tank.
CGH
– precision, durability, performance
Applications of chilled-water storage tanks
- Storage of chilled water, enabling flexible management of consumption based on system demand.
- Maintaining a stable chilled-water temperature, essential for efficient cooling performance.
- Accumulating cold water during low-demand periods to meet increased needs during peak hours.

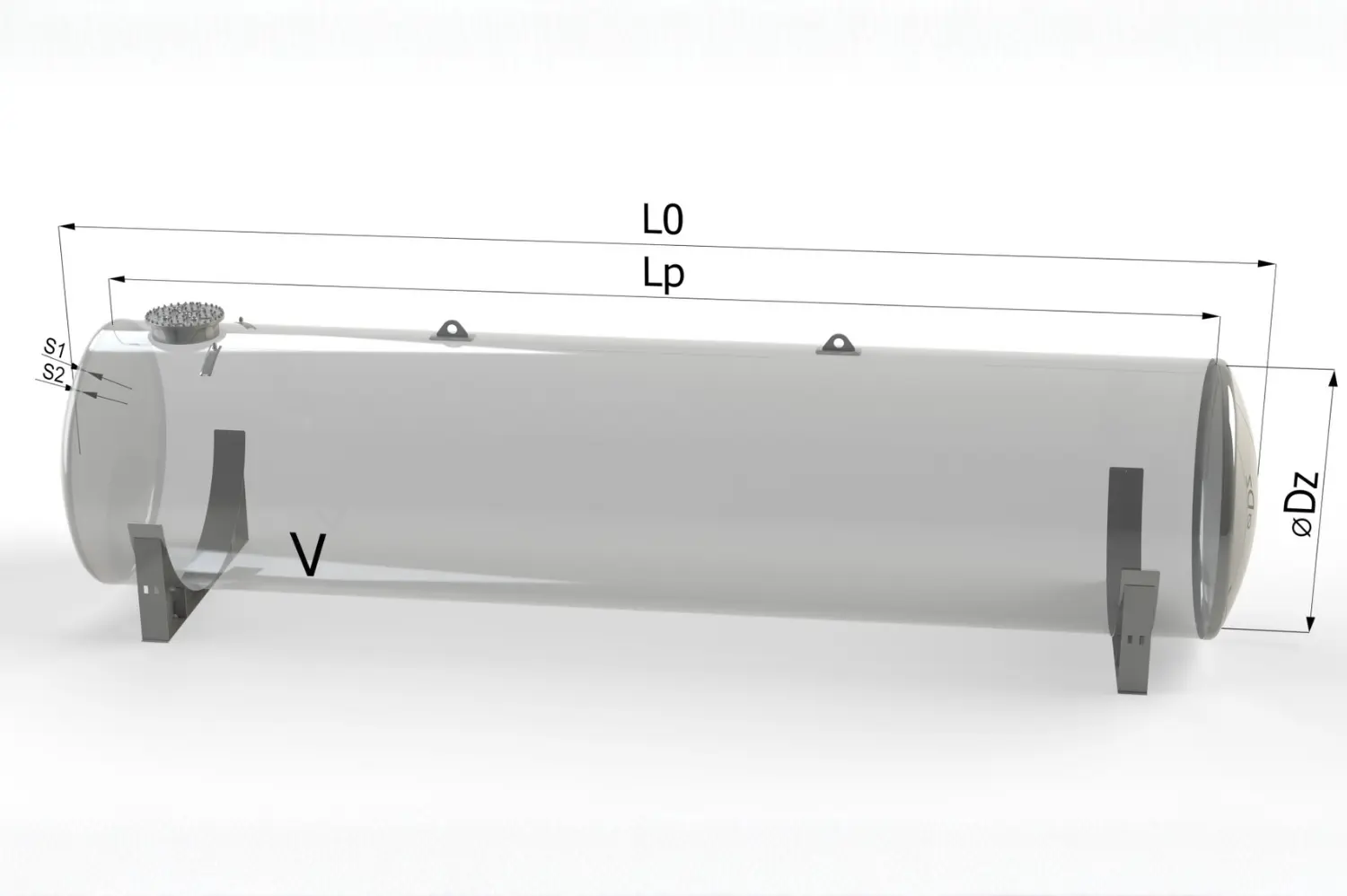

Technical data of chilled water tanks – precision and reliability
- Capacity: from 5 m³ to 120 m³, tailored to customer needs
- Diameter: from 2000 mm to 3200 mm, depending on project requirements
- Operating pressure: up to 0.5 bar
- Operating temperature range: –20°C to +50°C, suitable for various climate conditions
Optional equipment
- Thermal insulation – reduces energy loss and improves system efficiency
- Anti-corrosion coatings – protect the tank from environmental factors and extend its service life
- Ladders and service platforms – ensure safe access and maintenance
