OPW Nano System
OPW Nano System – outstanding monitoring for the most demanding applications
SiteSentinel® Nano™ is a control and measurement system from OPW that redefines the standards of fuel tank monitoring. Designed for maximum precision, safety and functionality, the OPW Nano System combines modern technologies with reliability even in the most challenging operating environments. It is intended for fuel stations, boiler rooms, oil storage facilities and all locations where precise monitoring of tanks and equipment is essential. Its versatility, high-quality construction and advanced features make it the top choice for professionals seeking dependable monitoring solutions.
Why choose the OPW Nano System?
- Precision and accuracy: Real-time measurement of fuel level, product temperature and water level at the bottom of the tank
- Safety: Leak detection in tanks, sumps and double-wall fuel pipelines

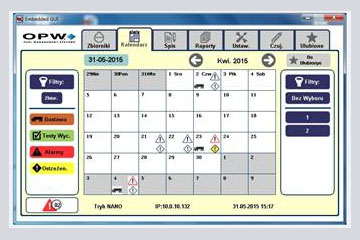

- Intuitive operation: Large colour LCD touch screen with a user-friendly graphic interface
- Versatility: Supports up to 12 probes and 24 sensors
- Mobile access: Remote management and servicing via GSM and internet
- Automation: Scheduled report generation – daily, weekly, monthly and yearly
- Durability: High-grade stainless-steel construction ensures long life and compatibility with a wide range of fuels
Technical specifications of the OPW Nano System
Control unit:
- Audible and visual alarm signalling, with external alarm output
- Built-in intrinsically safe barrier enabling the connection of multiple devices
- TCP/IP communication supporting static and dynamic IP addresses

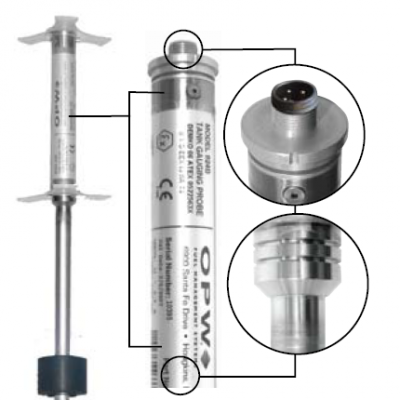

924B Series Probe:
- Technology: Magnetostrictive with float indicators
- Material: Stainless steel
- Operating temperature range: –40°C to +60°C
- Cable length: up to 300 m
Leak sensors:
- Detect liquids and leaks in interstitial spaces and sumps
- Operating temperature range: –20°C to +50°C

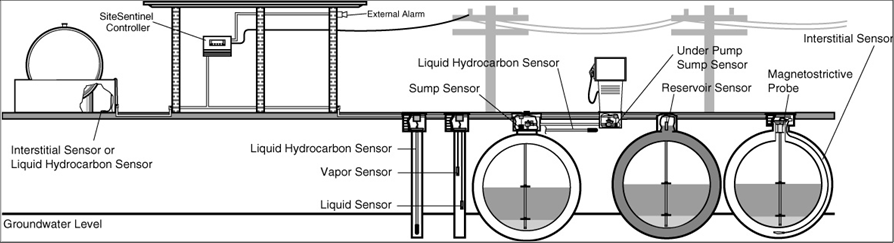

OPW Nano System – applications and purpose
- Monitoring fuel and water levels in tanks
- Tightness control in single-wall and double-wall tanks
- Leak detection in fuel pipelines
- Applications in fuel stations, boiler rooms and fuel storage facilities
The SiteSentinel® Nano™ control and measurement system enables collection and analysis of data regarding fuel volume, stored product temperature and water level at the bottom of the tank.
Why should you choose OPW Nano?
By choosing the OPW Nano System, you gain:
- Professional support: Comprehensive consulting and service at every stage
- Time and cost savings: Probe legalisation performed in accredited metrological laboratories
- Tailor-made solutions: Individual approach to each customer’s requirements
OPW Nano System – precision that pays off!
